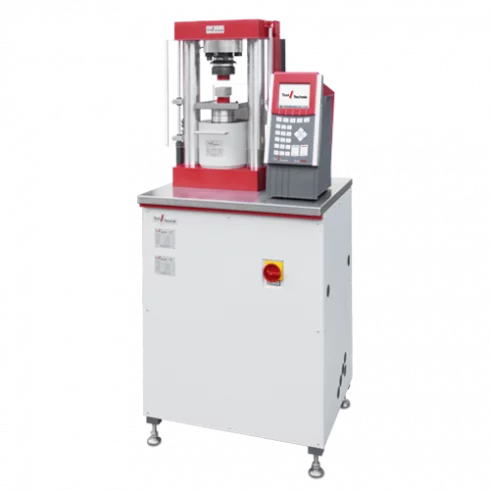

Compression Test Plant
Test plant in compact design for efficient, standard-compliant compressive strength tests on cement and other binding materials, preferably on:
- delivery as a ready-to-use, space-saving compact unit: “Set up, connect, test”.
- very easy programming and operation
- possibility to connect to Laboratory Information and Management Systems (LIMS)
- future-proof through retrofittable software options
- US-units selectable (lbs, psi, inch,…)
Description
- Prisms 40 x 40 x 160 mm accord. to EN 196 and ISO 679
- Cubes 50 mm (2 inch) edge length accord. to ASTM C 109
- Cubes 70.7 mm edge length accord. to BS 1881
Accuracy: Quality Class 1 / EN ISO 7500-1 / DIN 51220
Sizes: 300 kN
Additional Information
| Voltage | 400 V |
|---|---|
| Frecuency | 50-60 Hz |
| Power Consumption | 1.8 kW |
| Volume of the oil reservoir | 6 ca. l |
| LOAD FRAME MODEL 1543 | ____TECHNICAL DATA____ max. test load: 300 kN measuring range, class 1: 3.0 … 300 kN distance between the columns: 210 mm distance between the pressure plates 65 mm piston stroke: 60 mm working height: 1328 mm total height: 1670 mm base area (width x depth): 1200 x 550 mm weight ca. 520 kg |
