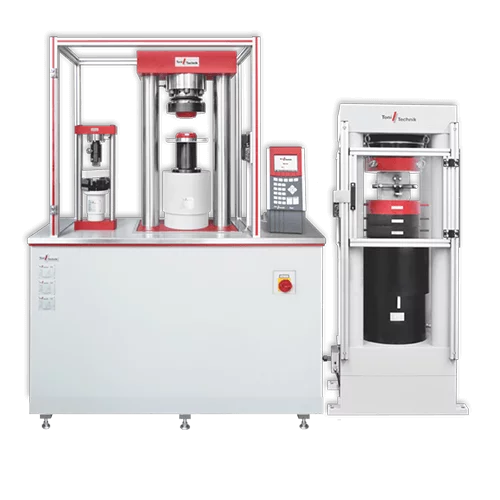

Compression and Bending Test Plant
Combined test plant for the standard-compliant testing of the compressive and flexural strength of cement and other binding materials, preferably for efficient routine tests of:
- Prisms 40 x 40 x 160 mm accord. to EN 196 / ISO 679
- Cubes 50 mm (2 inch) according to ASTM C109
- Cubes 70.7 mm according to BS 1881
Key benefits for the user:
- connection possibility for a third load frame, e.g. 3000 kN compression test frame for concrete testing
- possibility of machine control and test evaluation via a PC using testXpert software
- future-proof through retrofittable software modules
- possibility to connect to Laboratory Information and Management Systems (LIMS)
Description
Accuracy:
- Quality Class 1 / EN ISO 7500-1 / DIN 51220
Sizes:
- Compression 300 kN / 600 kN
- Bending 10 kN / 20 kN / 50 kN
Additional Information
| Maximum load | 1543.0300 = 300 kN 1544.0010 = 10 kN 1544.0020 = 20 kN 1544.0050 = 50 kN |
|---|---|
| measuring range, class 1 | 1543.0300 = 3.0 … 300 kN 1544.0010 = 0.1 … 10 kN 1544.0020 = 0.2 … 20 kN 1544.0050 = 0.5 … 50 kN |
| Clear width between the colums | 1543.0300 = 210 mm 1544.0010 = 152 mm 1544.0020 = 152 mm 1544.0050 = 154 mm |
| Distance between the pressure plates | 1543.0300 = 65 mm 1544.0010 = N/A 1544.0020 = N/A 1544.0050 = N/A |
| Distance: supporting rollers / loading roller | 1543.0300 = N/A 1544.0010 = 51 mm 1544.0020 = 51 mm 1544.0050 = 51 mm |
| Support distance (adjustable) | 1543.0300 = N/A 1544.0010 = 100 / 120 mm 1544.0020 = 100 / 120 mm 1544.0050 = 100 / 120 mm |
| Length of the rollers | 1543.0300 = N/A 1544.0010 = 45 mm 1544.0020 = 45 mm 1544.0050 = 45 mm |
| Diameter of the rollers | 1543.0300 = N/A 1544.0010 = 10mm 1544.0020 = 10 mm 1544.0050 = 10 mm |
| Piston stroke | 1543.0300 = 60 mm 1544.0010 = 30 mm 1544.0020 = 30 mm 1544.0050 = 30 mm |
| Voltage | ~230 / ~400 V |
| Frequency | 50-60 Hz |
| Power consumption | 1.5 kW |
| Working height / total height | 1300 / 1700 mm |
| Footprint (width x depth) | 1200 x 550 mm |
| Weight incl. ToniTROL II and load frame 50 kN | approx. 510 kg |
