Universal Hardness Tester – DuraVision – SCS INSTRUMENTS
Test methods
- Vickers
- Knoop
- Brinell
- Rockwell
- Carbon testing
- Ball indentation hardness
Test load
- 0.3 – 250 kg
- 3 – 3,000 kg
Versions
- Handwheel operated version
- Motorized test unit
- Fully automatic test sequences
- Lite version without PC, display, clamping jaws or turret
Standards
- ISO 6506
- ISO 6507
- ISO 4545
- ASTM E384
- ASTM E92
- ASTM E10
- ISO 6508

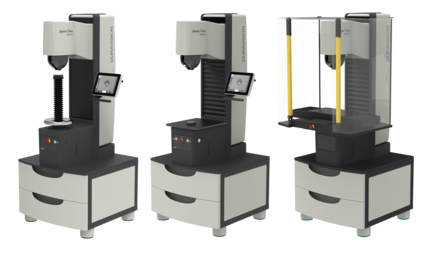

Overview of DuraVision macro hardness tester
- DuraVision solves a wide variety of test tasks and is known for its efficiency in macro hardness testing applications.
- Even in harsh industrial environments, you can count on the reliable performance of this hardness tester, and always in accordance with currently applicable standards.
- The practical templates and comprehensive help features make macro hardness testing simple and easy to understand for any user. Precise hardness values are determined for different materials and component shapes. Test flat surfaces, tubes and pipes or spheres, whether made of steel, copper, aluminum or other materials.
Product advantages
- Load range 0.3-3,000 kg
- Ideal for Vickers, Knoop, Brinell, Rockwell, carbon testing and plastics testing
- Clamped and unclamped testing
- Automatic test sequence
- Control via touch display or PC
- Semi-automatic and fully automated version
Hardness Testing Methods – Deep Insights with the Right Test Method
- Depending on the model, the hardness tester covers load ranges from 0.3-250 kg or 3-3,000 kg.
- The macro hardness tester covers optical methods and differential-depth methods for your hardness testing applications. This includes Vickers, Brinell, Knoop or Rockwell.
- Different lenses are based on material hardness and test load and display your test results in high resolution. Your test results can be converted into other hardness values in accordance with industry standards.
DuraVision - reliable results & high return on investment
- Your investment in a DuraVision hardness tester significantly reduces the costs in your hardness testing processes. Fast and easy preparation of test tasks, the ability to store templates for recurring tests, and full automation of the test process reduce the operation time of hardness tests and save our customers time and money on a daily basis.
- With an intuitive testing software platform, familiarization with the program and reliable operation take no time at all.
