digi test II
Modular hardness testing system for fully automatic hardness testing according to Shore, VLRH, and IRHD on composite materials, flexible materials, elastomers, plastics, and foams with variable test geometries.
- ASTM D2240
- ASTM D1415
- DIN EN ISO 868
- DIN ISO 48-2
- DIN ISO 48-3
- DIN ISO 48-4
- NFT 46-003
- TD 00002001
- TD 00002002
- Shore A
- Shore A0
- Shore D
- Shore 0
- Shore 00
- Shore 000
- Shore 000S
- Shore E
- Shore B
- Shore C
- Shore D0
- Micro Shore A
- Micro Shore D
- Shore AM/c
- Shore M
- IRHD L
- IRHD N
- IRHD M
- IRHD H
- VLRH
Flat, sloped, convex, and concave geometries of composite materials, flexible materials, elastomers, plastics and foams The digi test II enables precise and user-independent hardness measurements on elastomers, plastics, flexible materials, composite materials, and foams. This modular expandable measuring system is utilized in research and development as well as in production and quality control to determine the material hardness of a wide range of portfolios and ensure quality standards.
Product Information

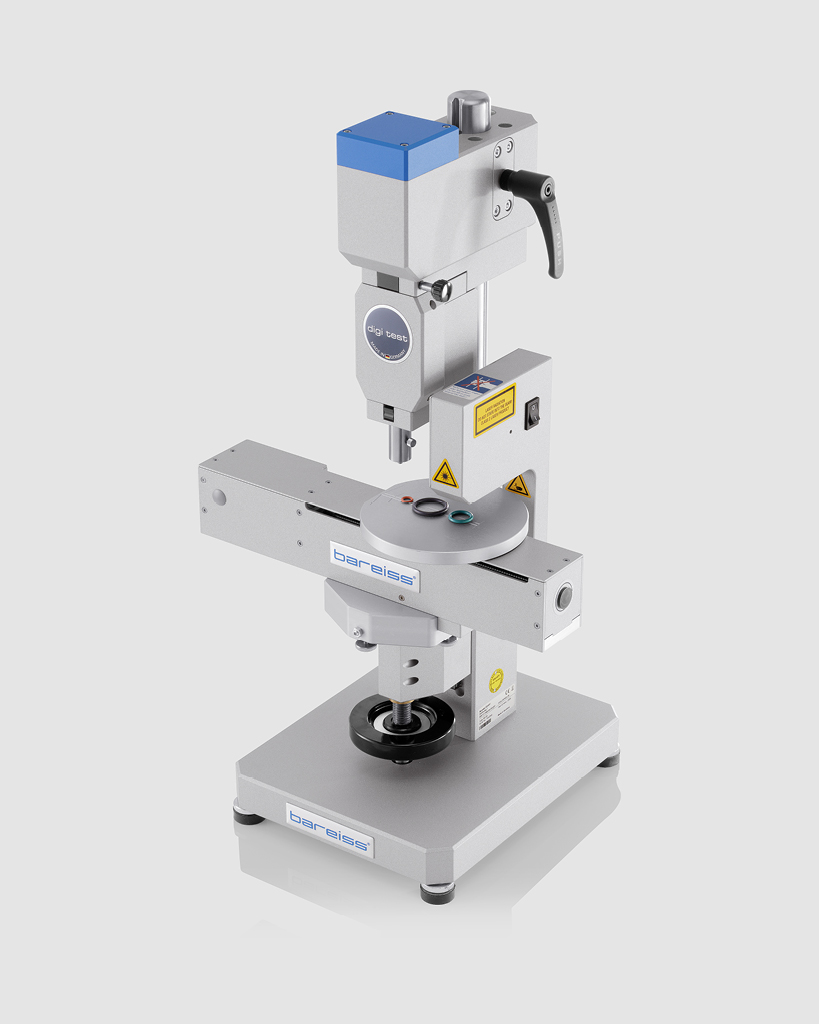

The modular digi test II offers you maximum flexibility in hardness testing for elastomers, plastics, flexible materials, composite materials, and foams. With just a few simple stepsand no tools required, the numerous measuring devices for Shore, VLRH, or IRHD can be easily swapped, allowing for quick transition between different measuring methods. Hardness measurements take place fully automatically, minimizing user influence to a minimum. An attached electronic unit detects the selected measuring device, automatically adjusts to the appropriate measuting method, and guides through the testing procedure via the user-friendly menu. Variable centering devices assist in aligning single samples or position multiple test pieces, for example automatically or through laser guidance. All measured values and information can be directly displayed and conveniently exported into the BareissOne software platform.
Key Features
Modular expandable

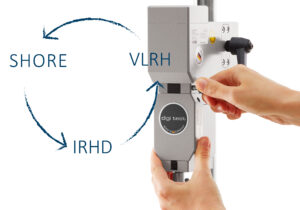

Interchangeable measuring devices enable effortless switching between the numerous measuring methods in the Shore, IRHD, and VLRH ranges without the need for tools and with just a few simple steps. With a variety of positioning and measuring devices available, the digi test II is the ideal choice for laboratory, production, quality control, and development when testing a wide range of product portfolios.

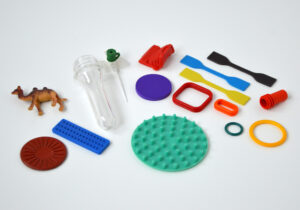

Many shapes – one solution
The modular expandability of the digi test II enables the measurement of all samples geometries. Whether you want to conduct measurements on flat, sloped, concave, or convex geometries, you will obtain precise measuring values starting from a sample thickness of 0.7 mm, thanks to the approach system.
Ssecure measuring values without user influence

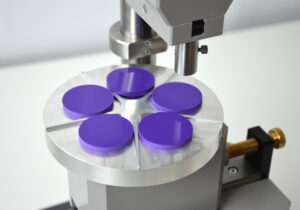

In addition to perfect alignment as a tabletop unit, the digi test II ensures the optimal measuring position of testspecimens through its numerous positioning devices. Most accurate measurements without user influence and manual pre-adjustment are guaranteed, giving you time for the important things.
Comprehensive analysis though various measuring methods
Measure not only the hardness grade of your test speciment but also the material's flow curve during the test. With the option for hysteresis measurements, the digi test II provides additional insights into the material's characteristic properties.
BareissOne software
The unique and modular software platform BareissOne allows you to centrally store and analyze all measuring values from your Bareiss testing devices. The user-friendly interface offers statistical analysis of measurement values with user administration and automatic generation of test protocols. Whether it is a standard test for individual measurements or a test series with a complex text sequence, BareissOne meets your specific requirements.
Other features

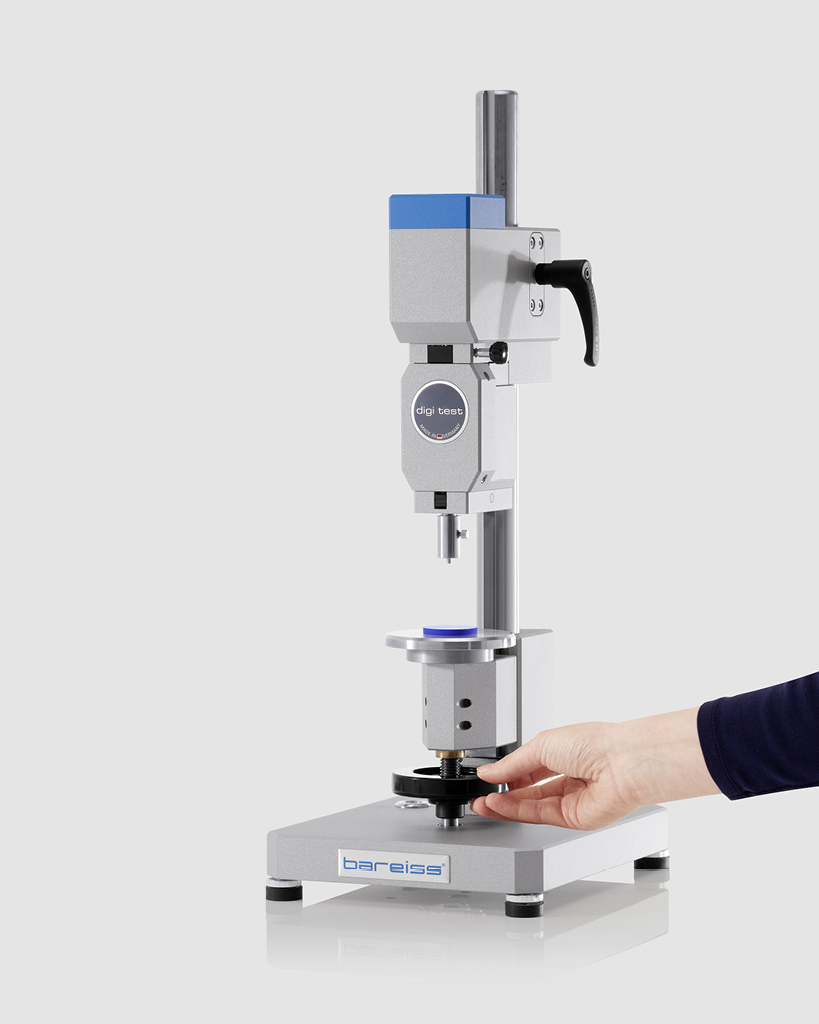

- Height adjustable mounting arm allows easy adjustment to different sample sizes.
- Also available for automation and measurements under the influence of temperature.
- Customer-specific solutions for every measuring method and sample geometry are available upon request.
- USB interface for data transfer.
